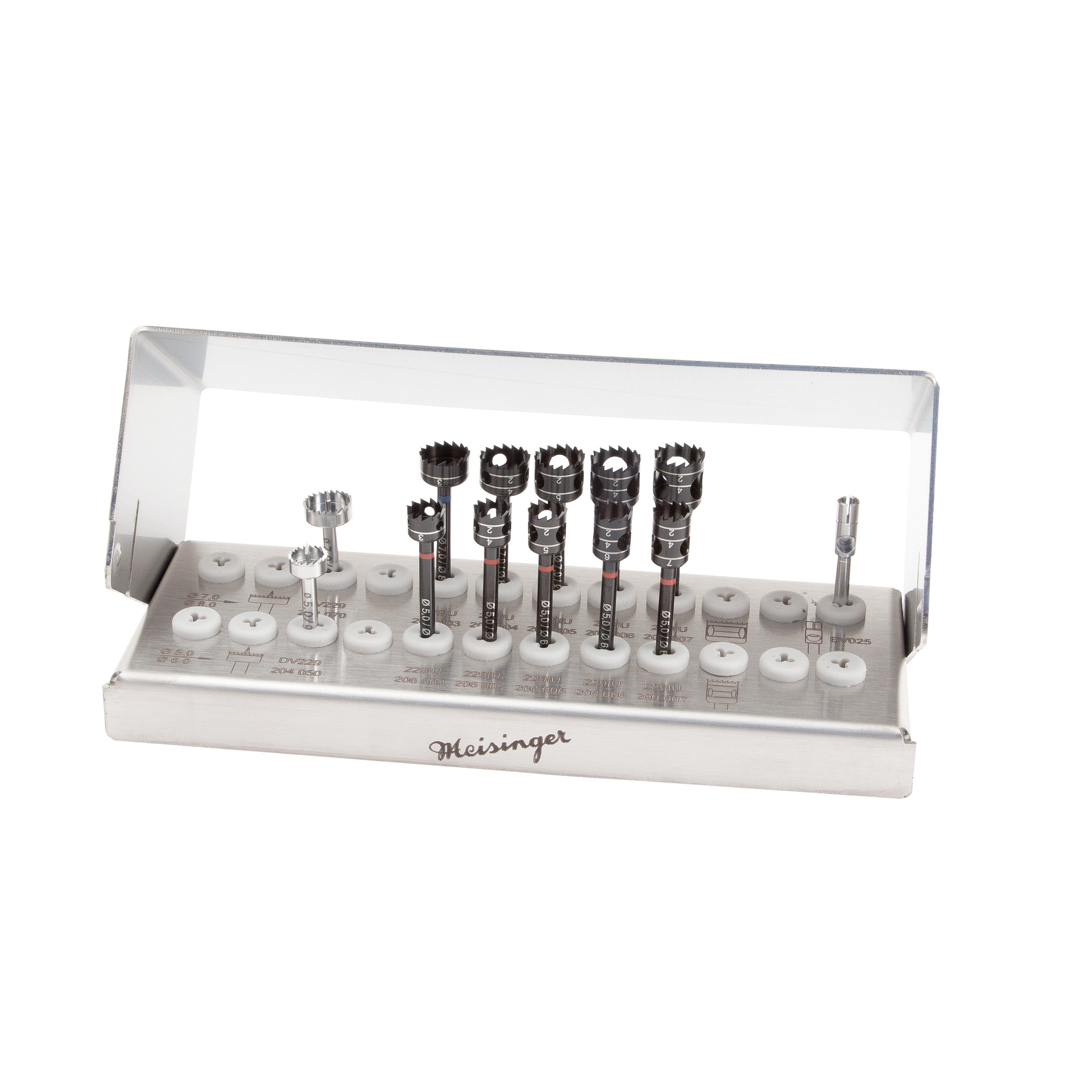

Master-Core Basic Safe harvesting of bone cylinders with Prof Istvan Urban The Master-Core Basic, developed together with Prof Istvan Urban, is used for the simple and safe harvesting of bone cylinders as part of bone augmentation. The system contains trephines with different lengths and diameters for this purpose. Due to the different lengths, the trephines have an automatic depth limiter, which ensures the protection of anatomical structures and therefore enables particularly safe and controlled bone harvesting. In addition, depth markings on the working parts allow additional depth control during extraction. The black coating of the trephine allows glare-free working and optimum visibility of the depth markings.All important information at a glanceSimple and safe extraction of bone cylindersOptimum protection of anatomical structures thanks to depth-limited trephinesDepth markings on the trephines for additional depth controlExtraction of bone cylinders of different diameters and lengthsBlack coating on the trephines for glare-free working

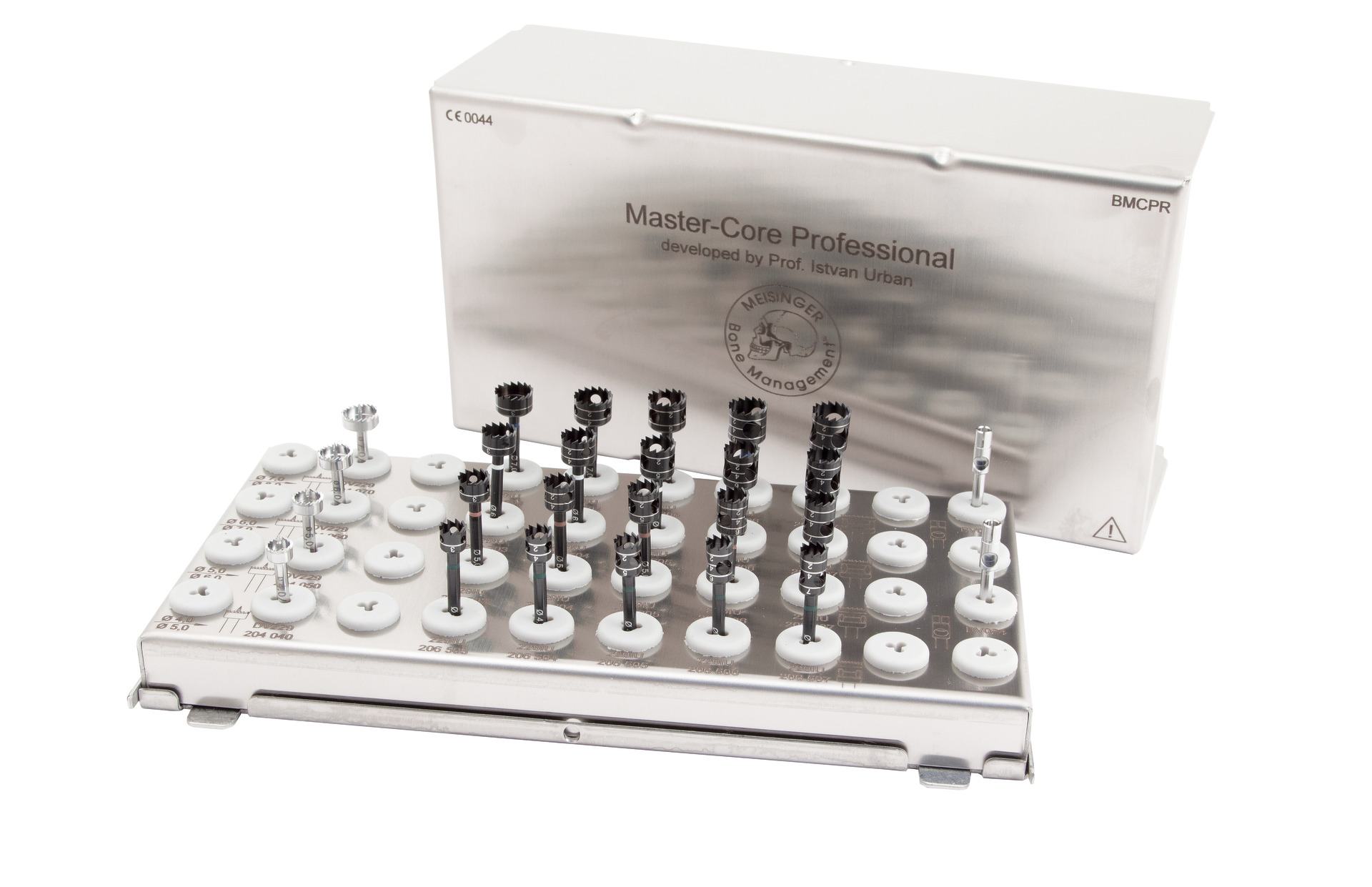

Master-Core Professional Developed with Dr. Istvan Urban The Master-Core Professional is used for the simple and safe extraction of bone cylinders in the context of bone augmentation. For this purpose, the system contains trephines with different lengths and diameters. Due to the different lengths, the trephines have an automatic depth stop, which ensures the protection of anatomical structures and thus allows for a particularly safe and controlled bone extraction. In addition, depth markings on the trephines’ working parts enable additional depth control during the extraction. The black coating of the trephines allows for glare-free work and optimal visibility of the depth markings. To be able to respond more precisely in specific indications, the Master-Core Professional contains a broad range of instruments.

Micro Screw System ‚Olsberger Konzept‘ by Prof. Dr. Fouad Khoury The Bone Management® Micro Screw Systems are used for the safe fixation and stabilisation of cortical bone grafts. The special feature of these systems are the osteosynthesis screws, which have a diameter of 1.0 mm and 1.2 mm. These Micro Screws are made of surgical stainless steel, which gives them high stability despite their reduced diameter.

Micro Screw System Basic ‘Olsberger Konzept’ by Prof. Dr. Fouad Khoury The Bone Management® Micro Screw Systems are used for the safe fixation and stabilisation of cortical bone grafts. The special feature of these systems are the osteosynthesis screws, which have a diameter of 1.0 mm and 1.2 mm. These Micro Screws are made of surgical stainless steel, which gives them high stability despite their reduced diameter.

Micro Screw System Plus according to Prof. Dr. Fouad Khoury System combination for extraction and fixation of bone grafts The Micro Screw System Plus is a combined system consisting of the Trephine Ejection Kit, which enables minimally invasive removal of local bone cylinders, and the Micro Screw System, which serves to securely fix and stabilise bone grafts. This allows the Micro Screw System Plus to perform the complete workflow of the Bone-Core technique. For the removal of local bone cylinders, the system includes two-part, internally cooled trephines which, thanks to their detachable trephine working parts, make it particularly easy to push out the harvested bone cylinders using special ejector instruments. For the subsequent fixation of the bone cylinders, the Micro Screw System Plus offers osteosynthesis screws with diameters of 1.0 mm and 1.2 mm, as well as all necessary instruments for placing the screws. The osteosynthesis screws are made of surgical stainless steel, providing high stability despite their reduced diameter. The combination of the two techniques in one system and the optimally coordinated instruments enable the user to follow a holistic, clear workflow when performing the Bone-Core technique, allowing the highest precision from harvesting to fixation of autologous bone cylinders. Advantages of the Micro Screw System Plus set at a glance:  System for performing the complete workflow of the Bone-Core technique Precisely coordinated instruments for highest precision from harvesting to fixation of autologous bone cylinders Two-part trephines for safe and minimally invasive removal of bone cylinders Secure fixation and stabilisation of cortical bone grafts Osteosynthesis screws with diameters of 1.0 and 1.2 mm made of surgical stainless steel for high stability Self-tapping thread flanks of the screws allow osteosynthesis screws to be screwed in without creating a pilot hole

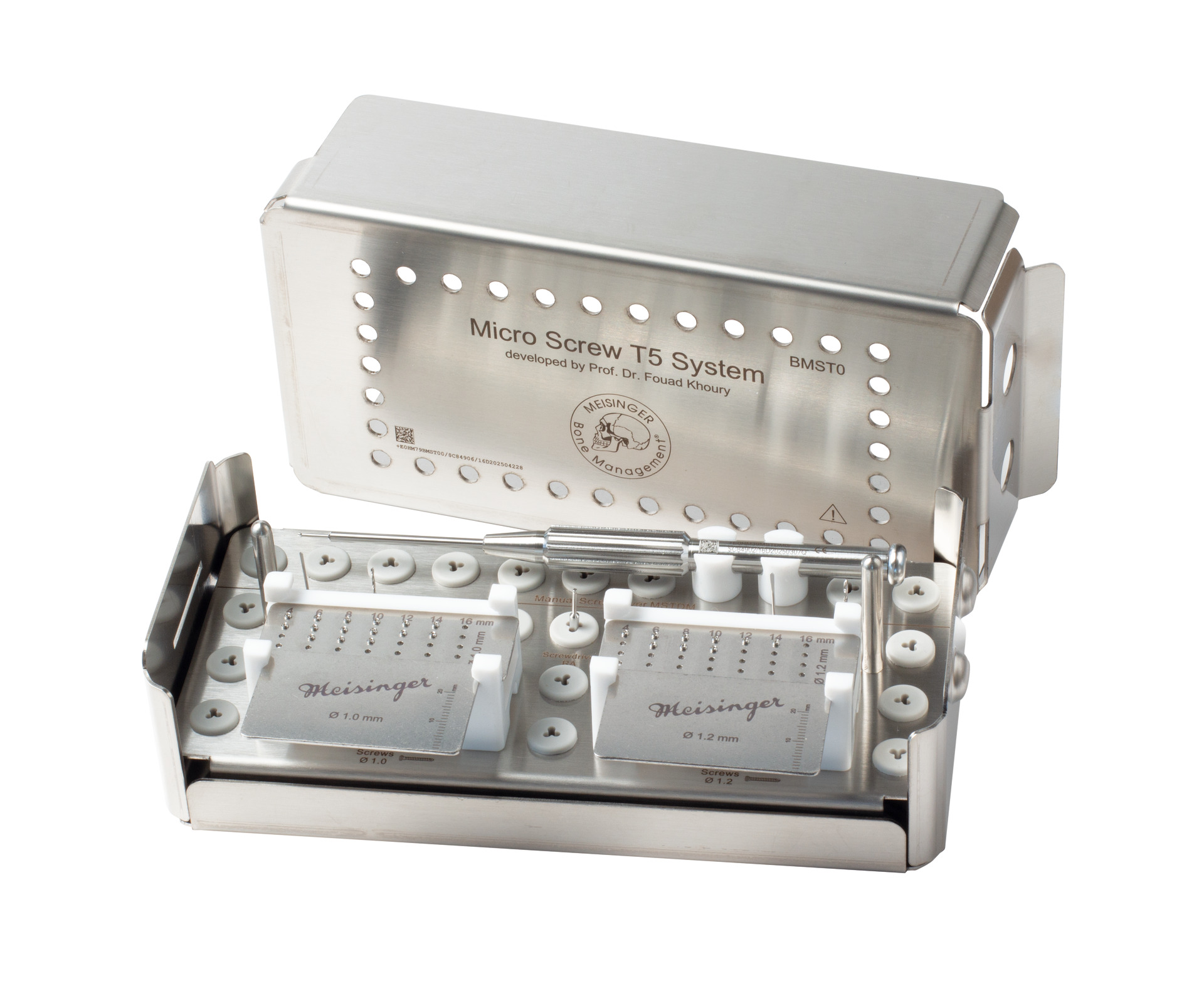

Micro Screw T5 System Screw System for Bone Core and Shell Technique | developed with Prof. Dr. Fouad Khoury The Micro Screw T5 Systems are used for the secure fixation and stabilization of bone grafts during bone core or shell technique. The special feature of these systems are the osteosynthesis screws, which are available in two diameters, 1.0 mm and 1.2 mm, and in different lengths. They are made of surgical stainless steel, which gives them a high degree of stability despite their minimized diameter. The new screw drive characterized by a 5-point star-shaped pattern has improved the fit of screwdriver and screw as well as force transmission during insertion. AT A GLANCE Safe fixation and stabilization of cortical bone grafts Osteosynthesis screws with diameters of 1.0 and 1.2 mm made from surgical stainless steel for high stability Self-tapping thread flanks of the screws allow the osteosynthesis screws to be screwed in without creating a gliding hole

Micro Screw T5 System Basic Screw System for Bone Core and Shell Technique | developed with Prof. Dr. Fouad Khoury The Micro Screw T5 Systems are used for the secure fixation and stabilization of bone grafts during bone core or shell technique. The special feature of these systems are the osteosynthesis screws, which are available in two diameters, 1.0 mm and 1.2 mm, and in different lengths. They are made of surgical stainless steel, which gives them a high degree of stability despite their minimized diameter. The new screw drive characterized by a 5-point star-shaped pattern has improved the fit of screwdriver and screw as well as force transmission during insertion.

Micro Screw T5 System Plus according to Prof. Dr. Fouad KhourySystem combination for extraction and fixation of bone graftsThe Micro Screw T5 System Plus is a combined system of the Trephine Ejection Kit, which enables the minimally invasive extraction of local bone cylinders, and the Micro Screw System, which is used for the safe fixation and stabilization of bone grafts. The Micro Screw T5 System Plus thus enables the complete workflow of the Bone-Core-Technique to be carried out.For the extraction of local bone cylinders, the system contains two-part, internally cooled trephines, which, thanks to the removable trephine working parts, enable the bone cylinders to be pushed out particularly easily with the help of special ejection instruments.For the subsequent fixation of the bone cylinders, the Micro Screw T5 System Plus offers osteosynthesis screws with a diameter of 1.0 mm or 1.2 mm, as well as all the necessary instruments for setting the screws. The osteosynthesis screws are made of surgical stainless steel, which gives them high stability despite their reduced diameter.The combination of the two techniques in one system and the optimally matched instruments offer the user a holistic, clear workflow when performing the Bone-Core-Technique and allow for the highest precision from the extraction to the fixation of autologous bone cylinders.

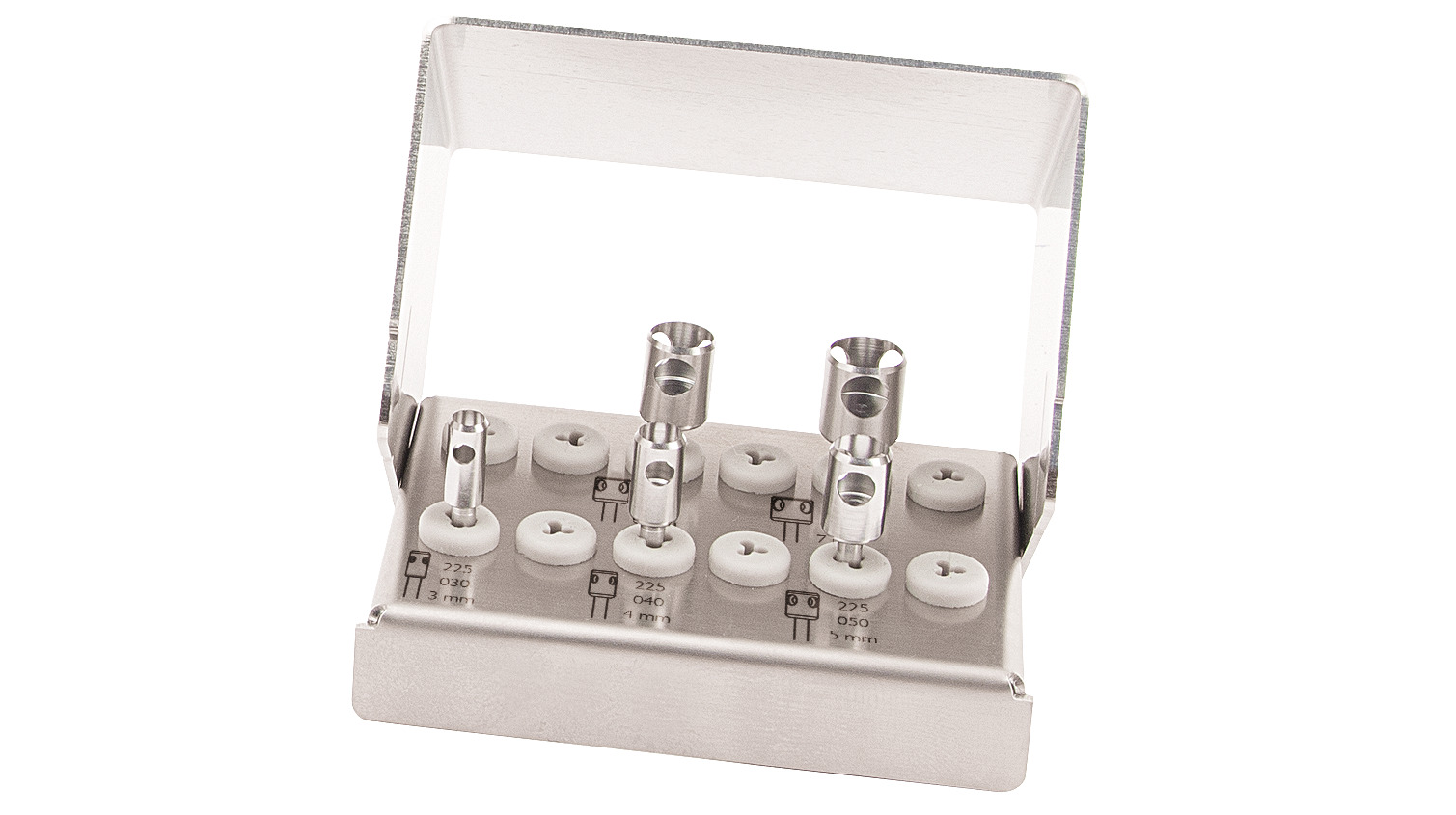

Punch Basic Kit Biopsy Punch Set for Extraction of Tissue Grafts The Punch Basic Kit contains Biopsy Punches in five different diameters for the performance of tissue removal. They serve for the application in immediate implant placement, for taking mucosa grafts in the scope of soft tissue management or biopsy as well as for uncovering the gingiva after implantation. The Biopsy Punches create clean cut surfaces and care for minimal tissue traumatization.

Saw Basic Kit Selection of Various Diamond Coated Saws for Oral Surgery The Saw Basic Kit provides a selection of diamond saws in the three most important diameters. They are used for the application in bone spreading or splitting operations. Due to the various sizes, the set offers the clinician the possibility of having a proper selection of these saws during surgery.

Augmentation with Autologous Bone Universally Applicable Bone Screw Set The osteosynthesis system Screw System TX enables universal use for the fixation of autologous bone cylinders, bone blocks, and bone shells within the scope of pre-implantological augmentation. The Torx connection ensures secure engagement of the screws in the driving tool. At the same time, high tensile forces can be transmitted. For every screw available in the core diameter of 0.9 mm, the set includes a rescue screw with a larger diameter in case the transplant cannot be securely fixed under tension. The small diameter and flat head size of the screws make their use particularly comfortable for both patient and practitioner.

Screw System TX Screw System for Bone Fixation The Osteosynthesis System Screw System TX Professional enables universal fixation of autologous bone cylinders, bone blocks, and bone shells for pre-implant augmentation. The Torx connection guarantees reliable engagement of the screws in the insertion tool, while also allowing high tensile forces to be transmitted. For each 0.9 mm screw included, the kit provides a larger-diameter rescue screw in case the graft does not permit high-tension fixation. The small diameter and low-profile screw head ensure comfortable application for both patient and practitioner. The Screw System TX Professional additionally includes screws in lengths of 13.0 mm and 16.0 mm.

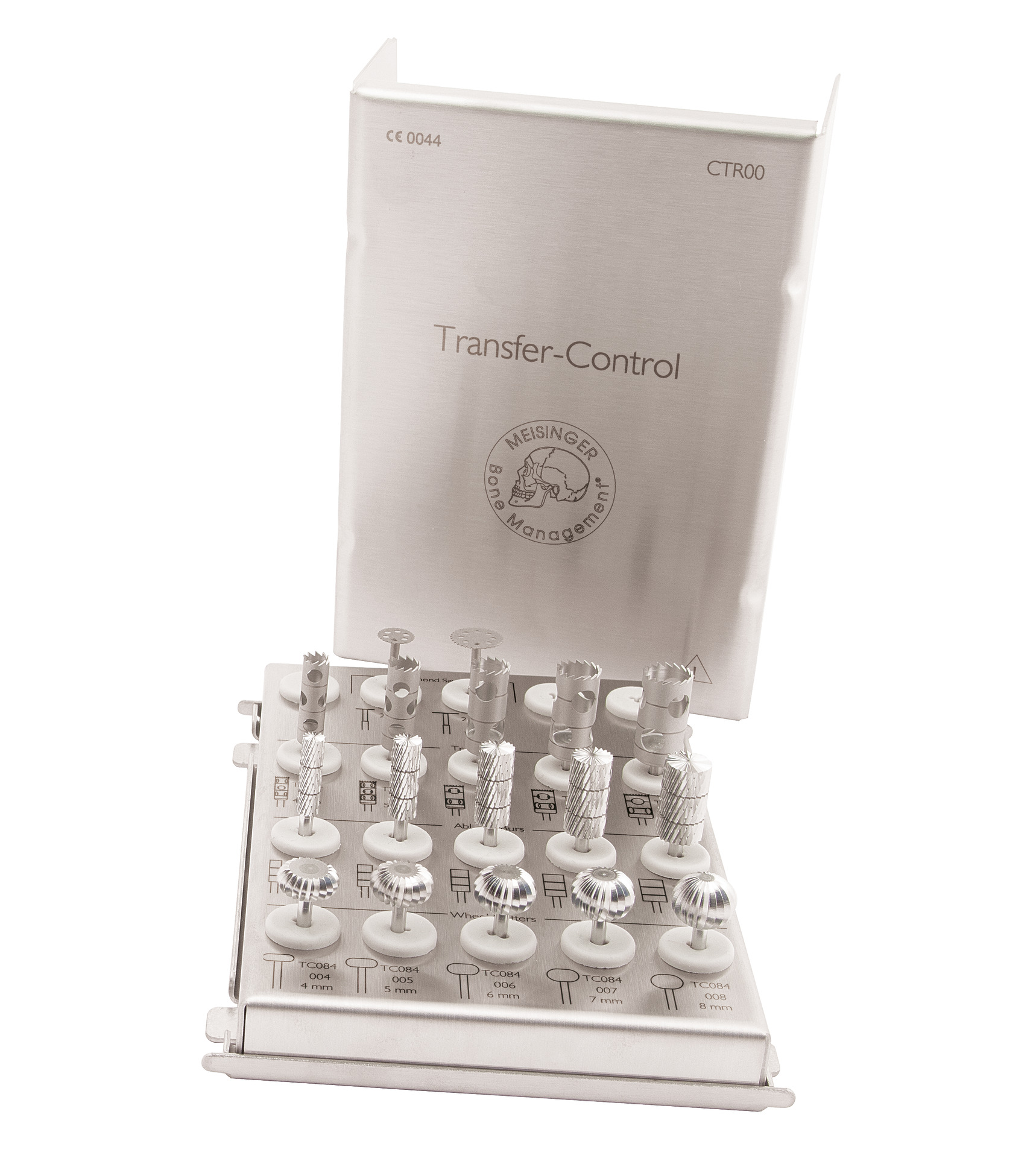

Transfer-Control Horizontal and Vertical Bone Replacing System Transfer-Control permits precise and standardized transplantation of bone cylinders for horizontal and vertical bone augmentation. The instruments are available in five diameters. They are perfectly adapted to each other so that the outer diameter of the ablative bur and the size of the wheel cutter correlates with the inner diameter of the trephine. So a press fit can be produced between the cylindrical bone and the prepared recipient site. The press fit can then be strengthened with a fixation screw, which is separately available (Screw System TX, Art.-No. BTX00 / Screw System TX Professional, Art.-No. BTXPR). Such precise fitting of bone cylinders lead to accelerated bone revitalization and wound healing. So a transplantable bone site is reached after only 3-4 months. Transfer-Control is suitable for the extraction of bone cylinders with diameters of 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm and 8.0 mm. AT A GLANCE   Easy and safe transplantation of bone cylinders   Intelligently coordinated instruments   Perfectly fitting bone cylinders   Precise work due to depth marks   Optimally suitable for vertical and horizontal augmentations   Creation of refreshed contact surfaces for rapid vitalization and wound healing

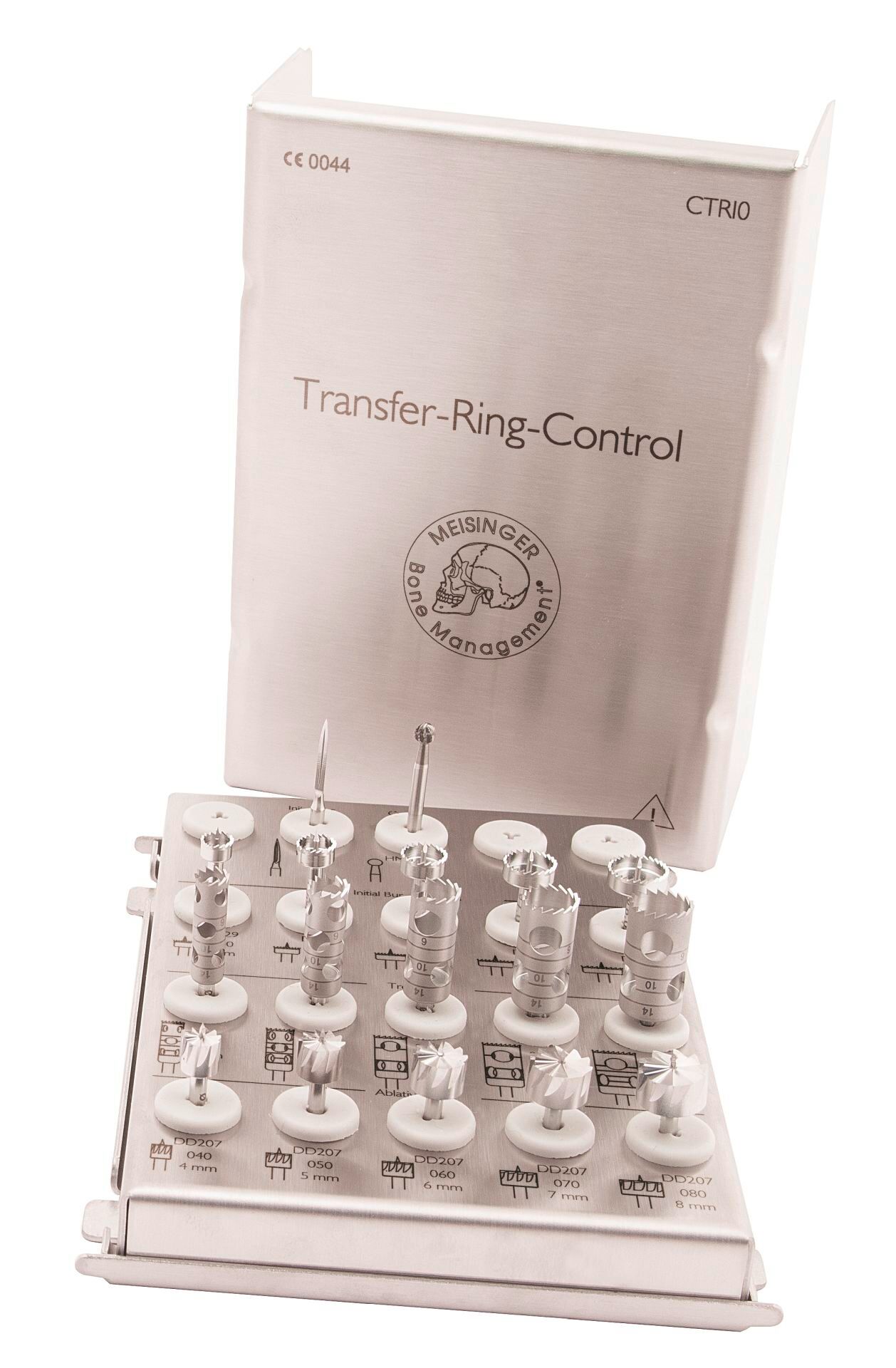

Transfer-Ring-Control I Vertical Bone Replacing System The most important condition for a safe healing of a bone graft is a congruent and fresh contact surface of the implant area. The Transfer-Ring-Control I System allows for this precondition for the healing of vertical bone grafts in a simple and controlled manner. This system offers a variety of various instrument sizes and provides high flexibility for the extraction of bone rings. Depending on requirements, various sizes of Initial Bur Trephines, Trephines and Ablative Burs are available. With the aid of the additional tungsten carbide bur, sharp bone edges can be smoothed precisely.

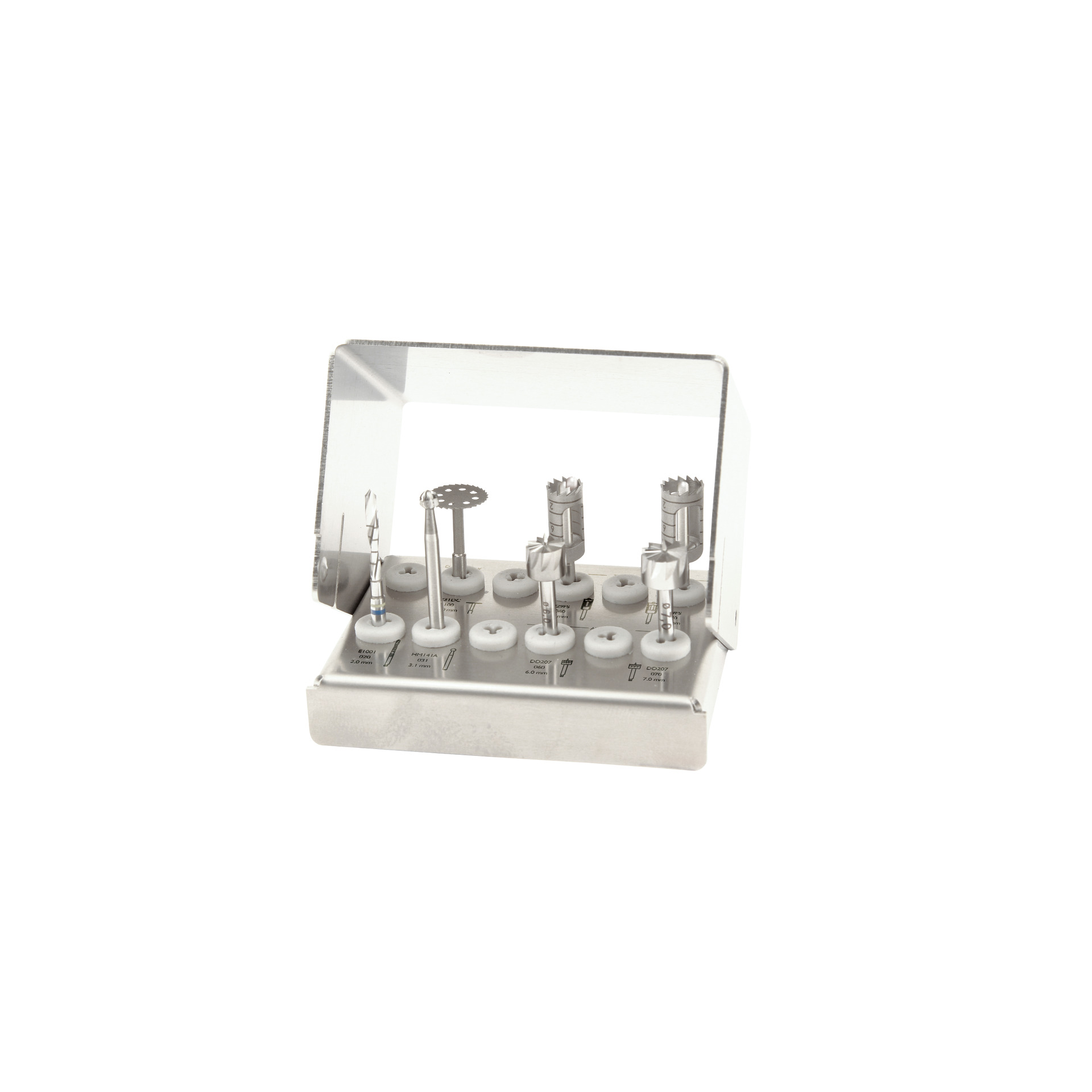

Transfer-Ring-Control II One-Stage Bone Ring Augmentation System | Technology by Dr. Bernd Giesenhagen Transfer-Ring-Control II is a system for the bone ring technique, developed by Dr. Giesenhagen. It allows for one-stage proceeding of augmentation and implantation in case of resorbed jaw bone, if implant insertion alone is not possible because of inadequate spatial conditions. Due to the perfectly matched instruments, there is created a congruent bone and implant site, which allows for the treatment of three-dimensional defects with the help of prefabricated, allogenic bone rings. Because of the optimal fit between jaw bone, bone ring and inserted implant and the possibility of the one-stage proceeding, high primary stability is accomplished and healing time is significantly reduced.

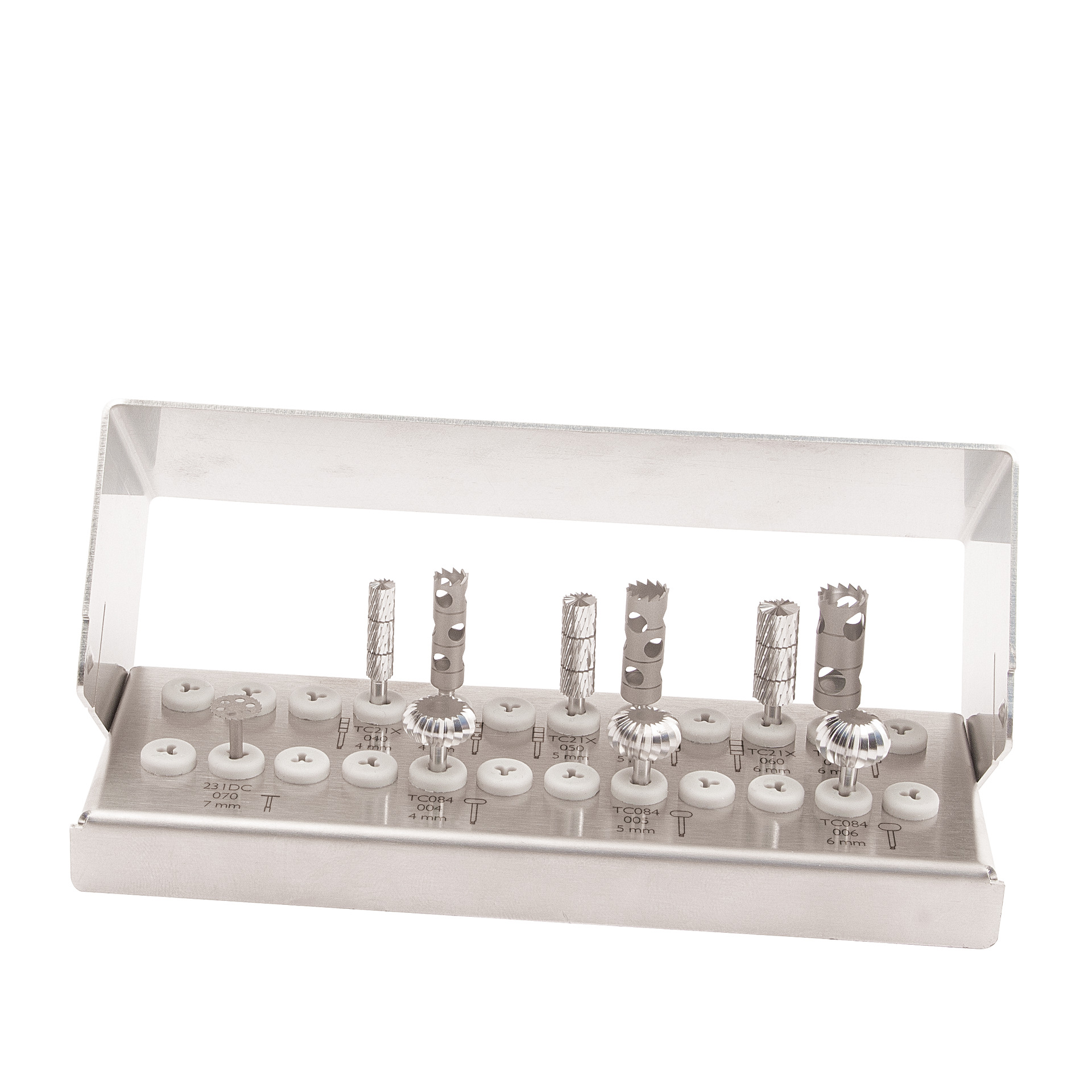

Bone Management System for Autologous Bone Transplantation Horizontal and Vertical Bone Augmentation with Bone Grafts Transfer-Control Basic enables a precise and standardized approach for the transplantation of bone cylinders for horizontal and vertical bone augmentation. The various milling tools are available in three diameters and are perfectly coordinated so that the outer diameters of the socket cutters and the size of the wheel cutters correspond to the inner diameters of the trephines. This allows a clamping fit to be achieved already when inserting the bone cylinder, which can be reinforced with separately available fixation screws (Screw System TX, Art.-No. BTX00 / Screw System TX Professional, Art.-No. BTXPR). The precisely transplanted bone cylinders result in a transplantable bone bed after just 3-4 months due to faster revitalisation and integration. Transfer-Control Basic is an entry-level system with a reduced set of instruments. It is suitable for harvesting bone cylinders with diameters of 4.0 mm, 5.0 mm, and 6.0 mm.

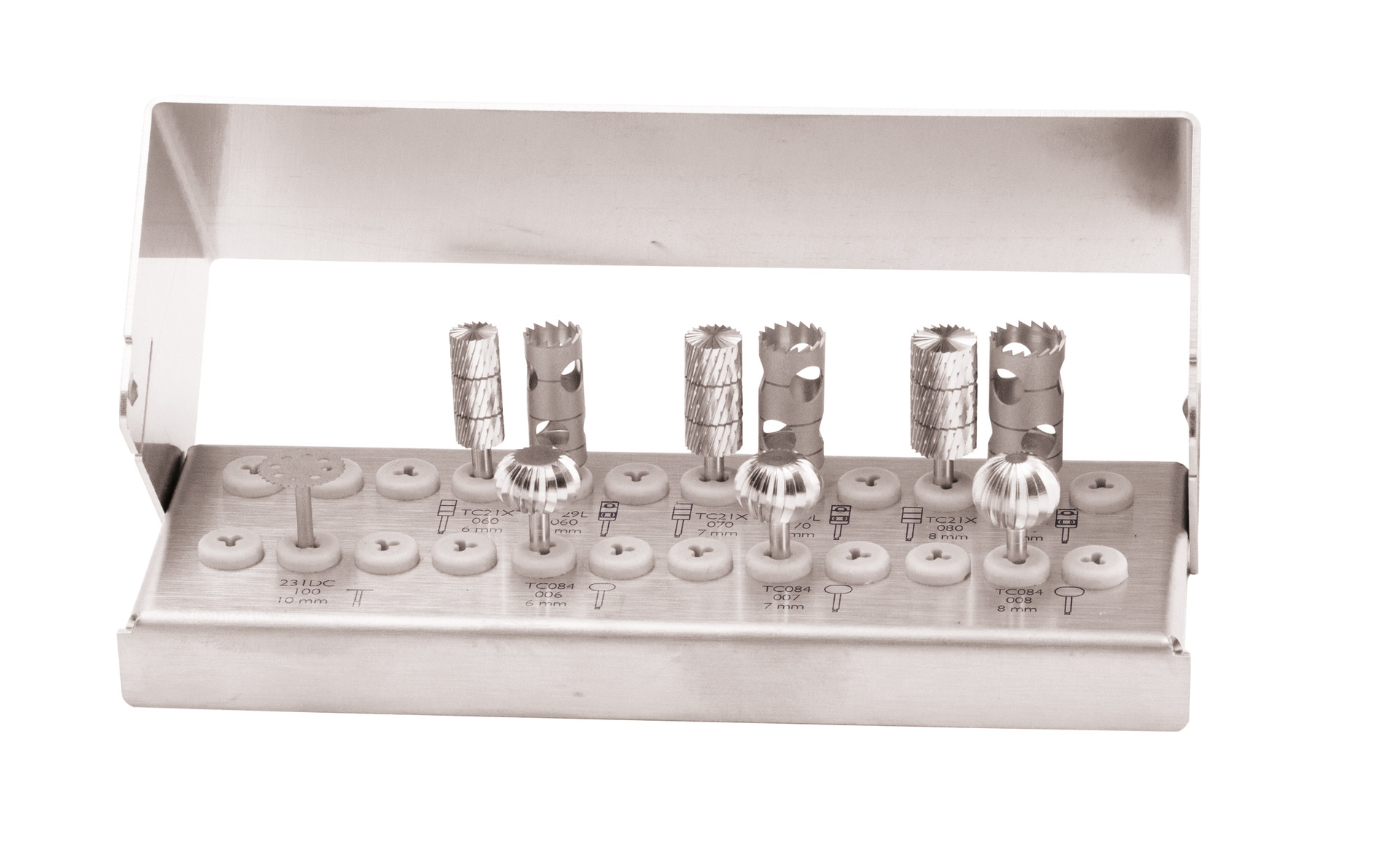

Bone Management System for Autologous Bone Transplantation Horizontal and Vertical Bone Augmentation with Bone Grafts The Transfer-Control Basic 2 enables a precise and standardised approach for the transplantation of bone cylinders for horizontal and vertical bone augmentation. The various milling tools are available in three diameters and are perfectly coordinated so that the outer diameters of the bearing mills and the size of the wheel mills correspond to the inner diameters of the trephines. This allows a clamping fit to be achieved when inserting the bone cylinder, which can be reinforced with separately available fixation screws (Screw System TX, Art.-No. BTX00 / Screw System TX Professional, Art.-No. BTXPR). The precisely transplanted bone cylinders result in a transplantable bone bed after just 3-4 months due to faster revitalisation and integration. Transfer-Control Basic 2 is an entry-level system with a reduced set of instruments. It is suitable for harvesting bone cylinders with diameters of 6.0 mm, 7.0 mm, and 8.0 mm.

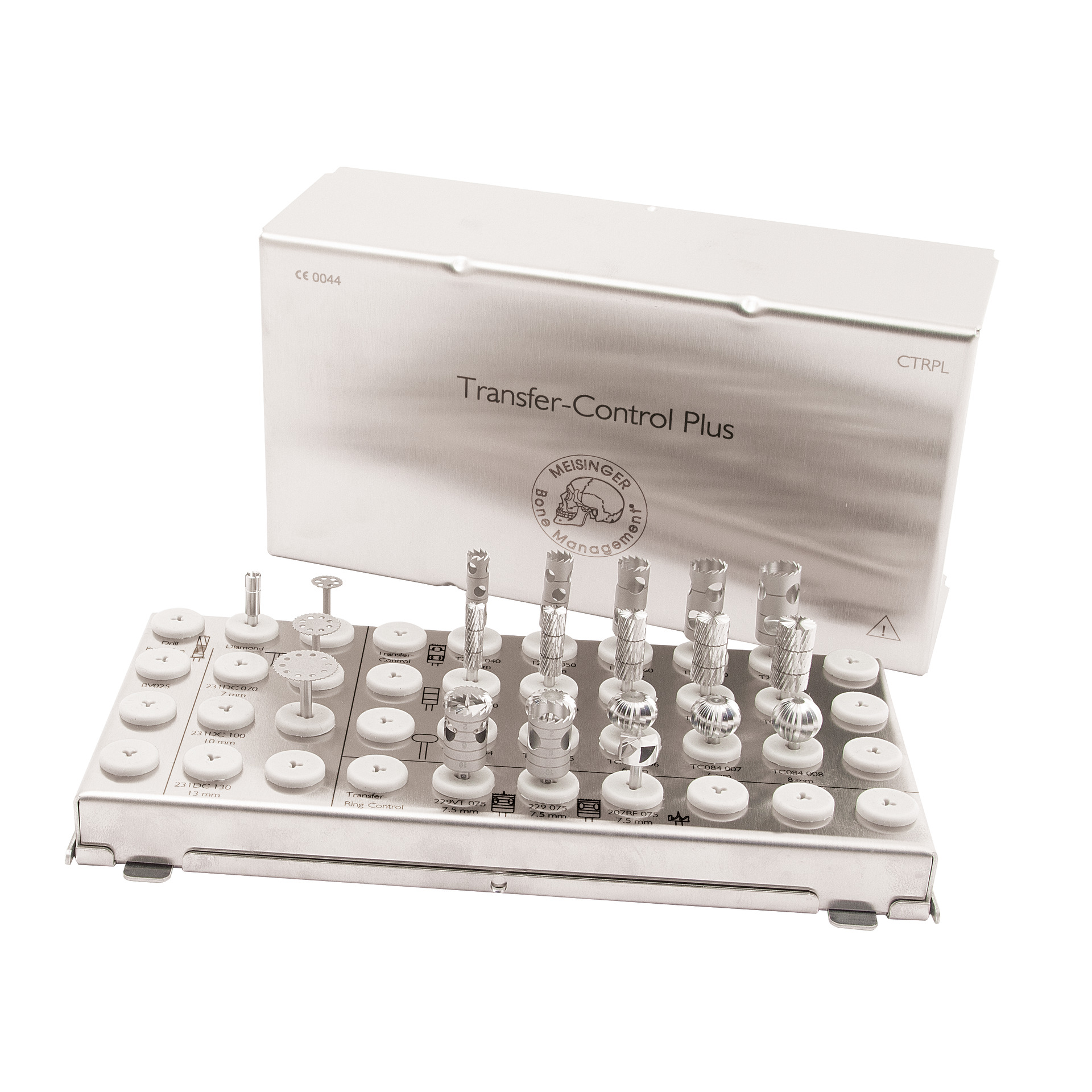

Transfer-Control Plus | Combined System for Horizontal and Vertical Bone Augmentation Transfer-Control Plus permits precise and standardized transplantation of bone cylinders and rings for horizontal and vertical bone augmentation. Different types of bone burs allow for high flexibility for the extraction of bone grafts. The instruments are perfectly adapted to each other often producing a press fit between the cylindrical bone or ring and the prepared recipient site. This press fit can then be strengthened with a fixation screw which is sold separately (Screw System TX, Art.-No. BTX00 / Screw System TX Professional, Art.-No. BTXPR). Such precise fitting of bone cylinders lead to accelerated bone revitalization and wound-healing. So a transplantable bone site is reached after only 3-4 months. AT A GLANCE   Combined system for easy and safe transplantation of bone cylinders and rings   Intelligently coordinated instruments   Optimally suitable for vertical and horizontal augmentations   Precise work due to depth marks   Creation of refreshed contact surfaces for rapid vitalization and wound healing

Trephine Basic Kit Trephine System for Extraction of Cylindrical Bone Grafts The Trephine Basic Kit provides a selected set of high-quality trephine drills in different sizes. These tools are designed specifically for creating cylindrical bone grafts quickly and accurately and for removing defined bone sections. The trephine drills have a depth of 10 mm and have been developed specifically with mandibular surgery and implantology in mind. Thanks to the well-defined laser depth marking in 2 mm intervals, the drilling depth can accurately be monitored. AT A GLANCE   Selection of high-quality trephines for the extraction of bone cylinders   Various trephine sizes for every application   Precise depth markings for optimal control   High cutting performance for good handling

Trephine Ejection Kit Trephine System for Extraction of Cylindrical Bone Grafts | developed with Prof. Dr. Fouad Khoury The Trephine Ejection Kit was developed together with Prof. Dr. Fouad Khoury. It contains several unique ideas which turn this kit into something special: Two-part, internally cooled trephines allow for a safe and minimally invasive extraction of local bone cylinders. The inner cooling helps to prevent damage to the bone tissue due to overheating, while the removable trephine working parts allow for especially easy sampling of the cut-out bone cylinders. Either with the aid of the ejection needle or the ejection instruments, which perfectly match the diameter of the trephine working parts, the bone cylinders can be pushed out of the trephines. Furthermore, the included pre-drilling trephines allow for a safe application of the trephines. Due to the two-part trephines, the variety of different diameters and the optimal matching of the instruments, the Trephine Ejection Kit offers highest efficiency, flexibility and precision for the extraction of bone cylinders. AT A GLANCE Two-part trephines for a safe and minimally invasive extraction of bone cylinders Protection against overheating due to internally cooled trephines Innovative application Standardized diameters and precise laser markings of the trephines allow for a predictable extraction of defined bone cylinders Perfectly matched instruments ensure highest precision and flexibility

Trephine Kit Trephine System for Extraction of Cylindrical Bone Grafts The Trephine Kit provides a broad set of high-quality trephine drills with fine size graduations. These tools are designed specifically for creating cylindrical bone grafts quickly and accurately and for removing defined bone sections. The trephine drills have a depth of 10 mm and have been developed specifically with mandibular surgery and implantology in mind. Thanks to the well-defined laser depth marking in 2 mm intervals, the drilling depth can accurately be monitored. AT A GLANCE   Große Auswahl hochqualitativer Trepane für die Extraktion von Knochenzylindern   Verschiedene Trepan-Größen für jede Anwendung   Präzise Tiefenmarkierungen für optimale Kontrolle   Hohe Schnittfreudigkeit für ein besonders gutes Handling

Trephine Kit Long Trephine System for Extraction of Cylindrical Bone Grafts p>The Trephine Kit provides a broad set of high-quality trephine drills with fine size graduations. These tools are designed specifically for creating cylindrical bone grafts quickly and accurately and for removing defined bone sections. The trephine drills have a depth of 14 mm* and have been developed specifically with mandibular surgery and implantology in mind. Thanks to the well-defined laser depth marking in 2 mm intervals, the drilling depth can accurately be monitored.
