Bone Management Range for 3D Implantology Implantology Set with Guide Sleeves for the Anterior and Molar Regions 3D Navigation Control is a guide sleeve system suitable for all common implant systems and planning software. Thanks to the included closed standard sleeves and the open guide sleeves for the molar region, the range allows the use of guide templates both in the anterior tooth area and in restricted molar situations. Furthermore, the system meets the specific instrumental requirements of flapless surgery. The 3D Navigation Control system includes a separate 3D laboratory kit, which enables the dental technician to install the sleeves precisely in the template.

Alveoplasty Surgical KitSurgical Contouring and Modification Kit The Alveoplasty Surgical Kit contains the most important instruments for surgical contouring and modification of the alveolar ridge when unwanted unevenness of the jawbone occurs after tooth extraction or bone degeneration. In this case, the kit offers the best way to smooth the jawbone. The Alveoplasty Kit contains two initial burs and two Lindemann burs, which allow for the performance of precise, initial osteotomies, even in hard cortical bone. To perform the alveoplasty itself, five different carbide cutters and a round diamond are included. The round working parts optimally protect the soft tissue against injuries. Thus, the alveolar ridge is prepared carefully and precisely for implant insertion or denture restoration.

Degranulation Kit Diamond System for effective Bone Debridement The Degranulation Kit contains four extra-coarse, spherical diamond instruments in diameters of 1.0, 2.5, 3.0 and 3.5 mm. In general, this kit is suitable for removing unwanted residues in extraction sockets. In particular, however, the diamond instruments have been developed to enable quick and easy bone debridement. With the help of the diamonds, degranulation tissue adhering to the bone can be removed quickly and easily without damaging the surrounding bone, so that subsequently inserted augmentation material comes into direct contact with healthy bone. The grooves on the shaft of the diamond instruments prevent blood from contaminating the contra-angle handpiece holder. AT A GLANCE Extra coarse, round diamonds for quick and easy debridement Reliable removal of degranulation tissue without damaging the surrounding bone Four different diameters for use in all situations Extra long instrument necks for an optimal view of the operating area Optimal addition to the degranulation process

Drill-Stop-Control (Bone Level + Tissue Level) Safe preparation of the implant site The Drill-Stop-Control system is used for simple and safe preparation of the implant site. The increasing diameters of the twist drills are perfectly matched to each other. The stop sleeves are used for a defined depth stop during both pilot and extension drilling. The instruments are equipped with laser marking for use without stop sleeves.

Drill-Stop-Control (myplant two) System for safe preparation of the implant site With the Drill-Stop-Control system specially developed for myplant two, preparation of the implant site is particularly easy and safe, as the diameters of the twist drills are perfectly matched to the myplant two implant system. The stop sleeves are used for the defined depth stop during both pilot and extension drilling. The lengths of the stop sleeves are ideal for subcrestal placement of the implant. The instruments are equipped with laser markings for use without stop sleeves. Important: The diameters are perfectly matched to the myplant two implant system.

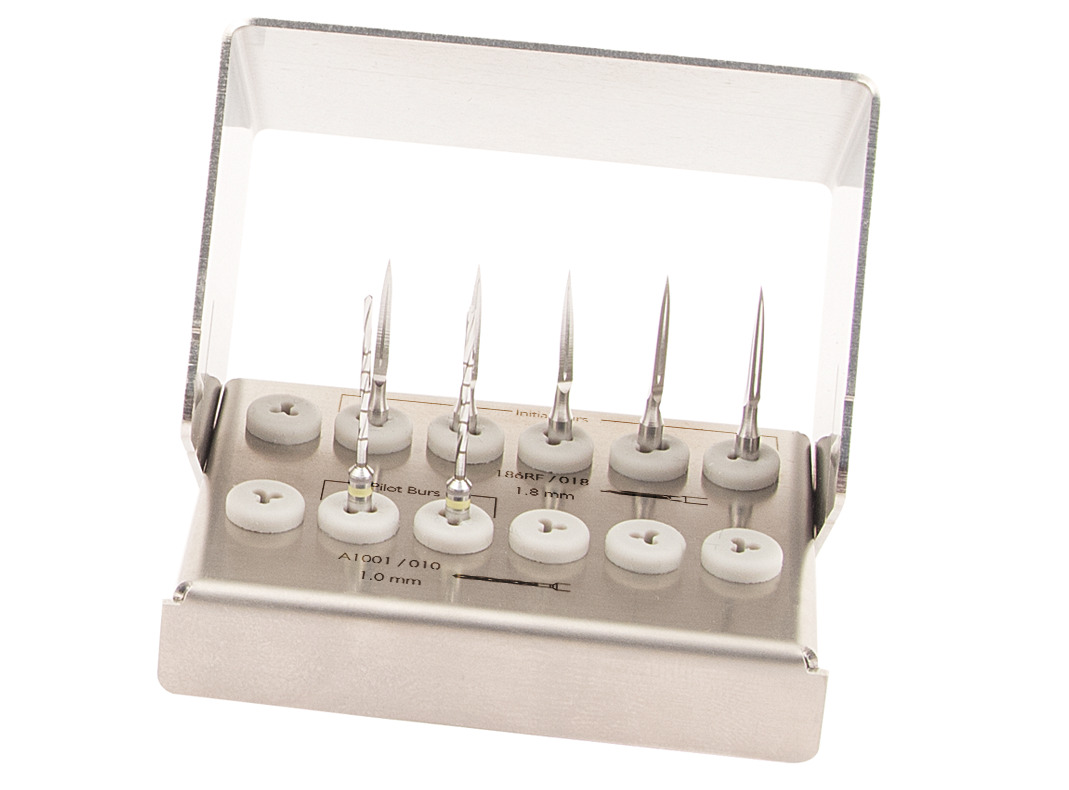

Parts included in the Implant Preparation Kit:

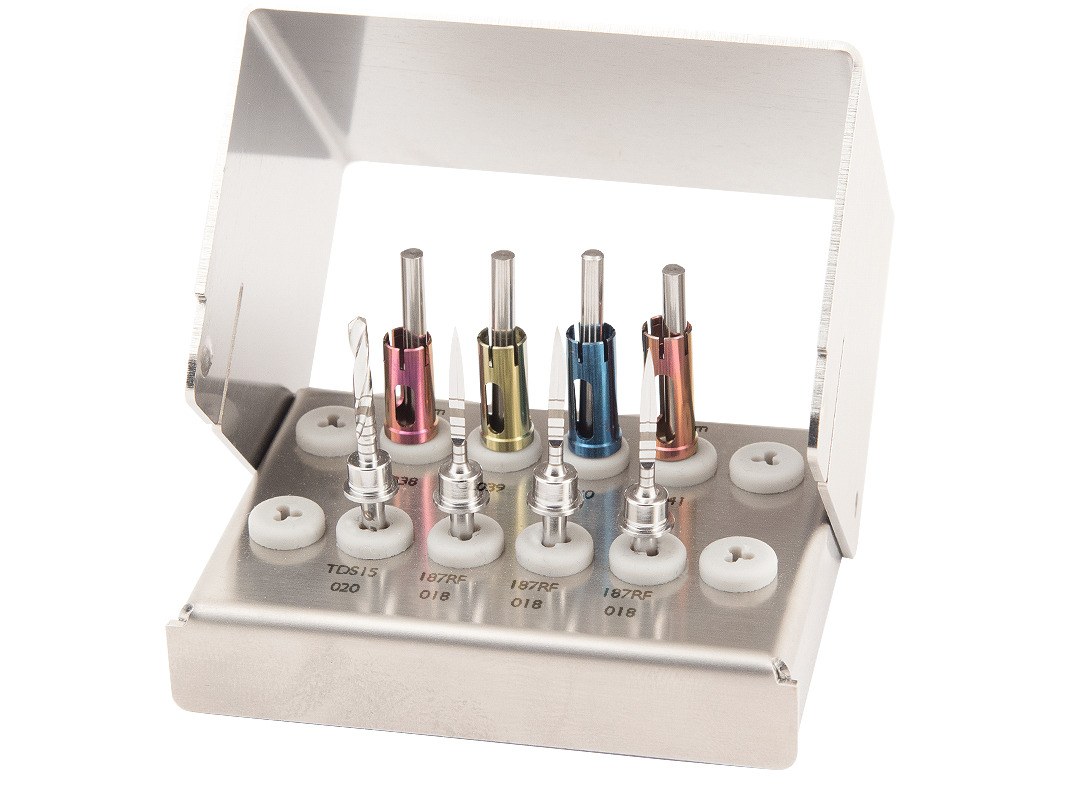

Implant Preparation Kit with Stop Simple preparation of the implant site The Implant Preparation Kit with Stop from MEISINGER is used for simple and safe preparation of the implant site. The stop sleeves allow a defined depth stop both during pre-coring and during pilot drilling. The instruments are equipped with laser markings for use without stop sleeves. At a glance Simple and safe preparation of the implant site Defined depth stop during pre-coring and expansion Coloured marking of the stop sleeves for easy differentiation Additional depth-marked instruments for optimum use without stop sleeves Parts included in the Implant Preparation Kit with Stop:

Periimplantitis Kit Tungsten Carbide Finishers for Periimplantitis Treatment The Periimplantitis Kit contains eight perfectly matched tungsten carbide finishing burs in egg and flame shapes for ideal peri-implantitis treatment. Both shapes come in two sizes and each in standard and ultra-fine toothing. The shapes, sizes and toothings of the working parts are perfectly suited for the intraoral treatment of titanium and for different shapes of implant neck and shoulder. All finishers have an extra-long FG shank (total length 32 mm), which allows particularly the treatment of difficult-to-access, deep areas. For peri-implantitis treatment, the finishers are used clockwise and are guided around the exposed implant counter-clockwise so that the implant surface is smoothed. AT A GLANCE Perfectly matched tungsten carbide finishing burs for the effective, intraoral treatment of titanium XXL FG shanks facilitate the treatment of difficult to access implants Different shapes and sizes for every individual patient case Clean and smooth titanium surfaces
