3D navigation control (guided implantology), BNA00
Implantology
Bone Management
Drill bath disinfection
Ultrasonic cleaning
Autoclave 135 degrees
Quantity per package: 1
Available, delivery time: 2 days
Product information "3D navigation control (guided implantology), BNA00"
Bone Management Range for 3D Implantology
Implantology Set with Guide Sleeves for the Anterior and Molar Regions

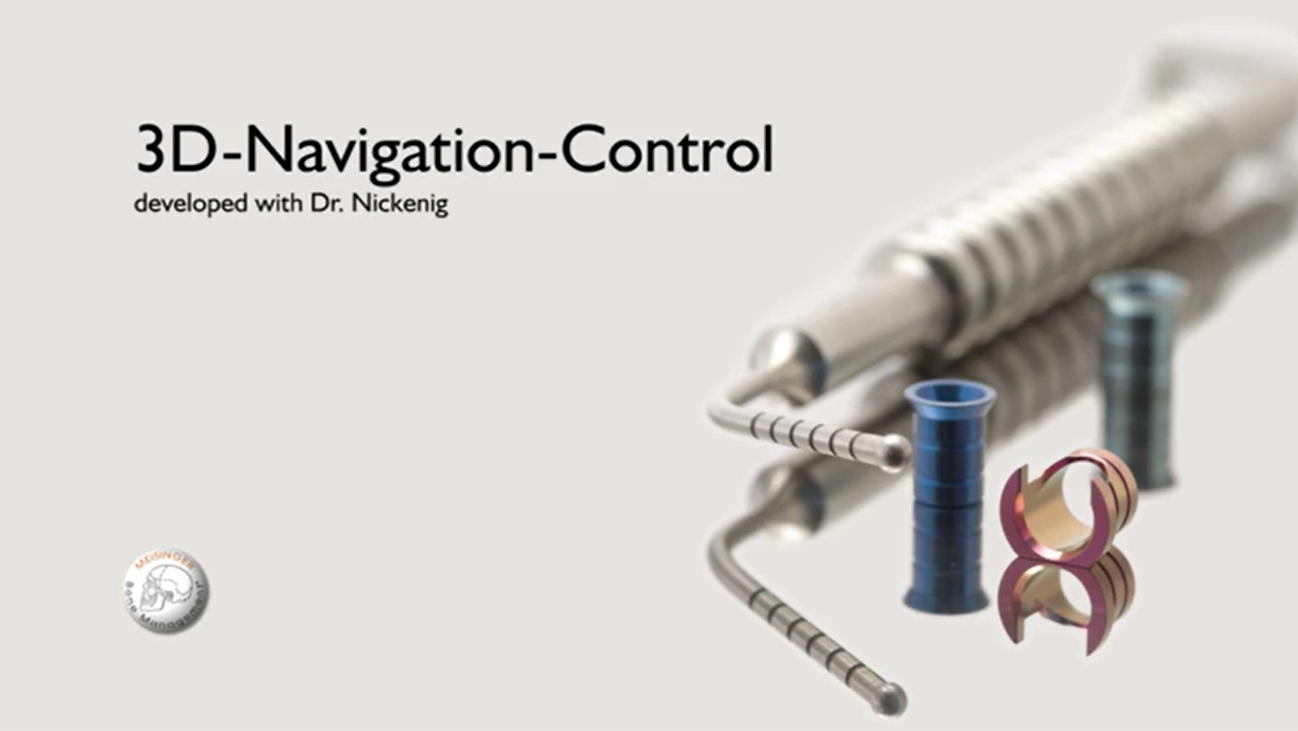

3D Navigation Control is a guide sleeve system suitable for all common implant systems and planning software. Thanks to the included closed standard sleeves and the open guide sleeves for the molar region, the range allows the use of guide templates both in the anterior tooth area and in restricted molar situations. Furthermore, the system meets the specific instrumental requirements of flapless surgery. The 3D Navigation Control system includes a separate 3D laboratory kit, which enables the dental technician to install the sleeves precisely in the template.
Products included in the ‘3D navigation control (guided implantology), BNA00’ range:
| Product description | Piece | Number |
| Drill sleeves 2.0mm closed, HN001 | 4 | 36HN001020040 |
| Drill sleeves 2.5mm closed, HN002 | 4 | 36HN002025040 |
| Drill sleeves 3mm closed, HN003 | 4 | 36HN003030040 |
| Drill sleeves 3.5mm closed, HN004 | 4 | 36HN004035040 |
| Closed drill sleeve holder, HN005 | 4 | 36HN005040045 |
| Drill sleeves 2mm open, HN006 | 4 | 36HN006020050 |
| Drill sleeves 3mm open, HN007 | 4 | 36HN007030050 |
| Drill sleeves 4mm open, HN008 | 4 | 36HN008040050 |
| Drill sleeve holder, open, HN009 | 4 | 36HN009050060 |
| Depth measuring probe, HN020 | 1 | 39HN020020035 |
| BUR EXTENSION | 1 | 39BV040 |
| Implant bur 3.0 x 23mm, HN018 | 1 | 39HN018022030 |
| Implant bur 2.5 x 23mm, HN017 | 1 | 39HN017022025 |
| Implant bur 2.0 x 23mm, HN016 | 1 | 39HN016022020 |
| Implant bur 4.0 x 20mm, HN015 | 1 | 39HN015019040 |
| Implant burr 3.5 x 20mm, HN014 | 1 | 39HN014019035 |
| Implant bur 3.0 x 20mm, HN013 | 1 | 39HN013019030 |
| Implant bur 2.5 x 20mm, HN012 | 1 | 39HN012019025 |
| Implant bur 2.0 x 20mm, HN011 | 1 | 39HN011019020 |
| Implant bur 2.0 x 17mm, HN010 | 1 | 39HN010016020 |
| INBUS SW 1,50 | 1 | 39SW150 |
| Skin punch HP, 225 | 1 | 3300225204030 |
| Skin punch HP, 225 | 1 | 3300225204040 |
| Skin punch HP, 225 | 1 | 3300225204050 |
| DEPTH GAUGE 3,0 | 1 | 3964556DU0000 |
| TIEFENLEHRE 2,0 | 1 | 3964557DU0000 |
| Template drill 6.0/6.5 x 13mm, HN022 | 1 | 39HN022060065 |
| Template drill 4.5/5.5 x 13mm, HN021 | 1 | 39HN021045055 |
| Figure: | BNA00 |
|---|---|
| Applications: | Bone Management, Implantology |
| Cleaning instructions: | Autoclave 135 degrees, Drill bath disinfection, Ultrasonic cleaning |
| Sterile packed: | No |
| Multiple use: | Yes |
| Deposit clearing | No |
|---|
